    Howdy,

    What would be the effect of swapping the input & output cables on a spring reverb tank? Would it still produce an effect? Could it damage the electronics?

    The amp we're discussing a solid-state design.

  2.

    The Jazz Guitar Chord Dictionary

  3. #2

    User Info Menu

    Quote Originally Posted by WimWalther
    Howdy,

    What would be the effect of swapping the input & output cables on a spring reverb tank? Would it still produce an effect? Could it damage the electronics?

    The amp we're discussing a solid-state design.
    The reverb won’t work. It won’t break anything. Google “reverb tank polarity" if you need more extensive detail/explanation.

  4. #3

    User Info Menu

    ".. the reverb won't work."

    Meaning.. won't work correctly or won't work at all?

    Point of this, I have an amp (the same Polytone that's been taking up my time) with very low reverb output. At full gain its only just noticeable.. and there's no mad clatter if I rock / bump the cabinet. They use a Hammond tank, iirc.

    I'm thinking the I&O leads may be reversed, but I didn't want to risk damage by just swapping leads as a test

  5. #4

    User Info Menu

    Quote Originally Posted by WimWalther
    ".. the reverb won't work."

    Meaning.. won't work correctly or won't work at all?

    Point of this, I have an amp (the same Polytone that's been taking up my time) with very low reverb output. At full gain its only just noticeable.. and there's no mad clatter if I rock / bump the cabinet. They use a Hammond tank, iirc.

    I'm thinking the I&O leads may be reversed, but I didn't want to risk damage by just swapping leads as a test
    SFAIK, it won't work at all, but testing that by reversing the leads won't cause damage. Seriously, google "reverb tank polarity." One of the things that pops up is info about polarity of the wires themselves (i.e., reversing hot and ground wires on one of the connectors). Conceivably, this could cause the effect you're experiencing. But so could the thing simply being broken in some way.

  6. #5

    User Info Menu

    The tank could be broken, the connectors could have corrosion, or it could be something else. If you reverse the connectors, it won't work at all. I suggest cleaning/reseating the connectors, as a quick and easy check.

  7. #6

    User Info Menu

    Quote Originally Posted by John A.
    Seriously, google "reverb tank polarity."
    I'd already done so, thanks. It didn't provide the level of assurance I like to have before proceeding into unknown areas.

  8. #7

    User Info Menu

    So you're willing to believe random strangers on the internet?

  9. #8

    User Info Menu

    Quote Originally Posted by sgosnell
    The tank could be broken, the connectors could have corrosion, or it could be something else. If you reverse the connectors, it won't work at all. I suggest cleaning/reseating the connectors, as a quick and easy check.
    Excellent point!

    I suffered with an unusable Ampeg Reverberocket for years. It would be intermittently crackly. Spent a lot of money on techs. Turned out to be the reverb tank connectors. The little wings on the plug weren't making good contact with the jack on the tank. 10 seconds with a pair of needlenose pliers fixed it.

    I got lucky. While replacing a capacitor as suggested by an on-line amp expert (which may have been sensible, but wasn't the problem in this case), I accidentally wiggled the line to the tank and figured it out.

  10. #9

    User Info Menu

    Quote Originally Posted by sgosnell
    So you're willing to believe random strangers on the internet?
    Not per se. But I've become pretty good at sifting through information from various sources, comparing it to my own knowledge & observations, and proceeding from there with a reasonable degree of confidence.

  11. #10

    User Info Menu

    Quote Originally Posted by WimWalther
    I'd already done so, thanks. It didn't provide the level of assurance I like to have before proceeding into unknown areas.
    OK, when I get home I'll reverse the in/out connections on my amp. If I die from doing this, I'll let you know. If you don't hear back from me tomorrow, assume everything went fine.

  12. #11

    User Info Menu

    Quote Originally Posted by John A.
    If I die from doing this, I'll let you know.
    Ha!

    I'd be curious to know what you get, but a lot will depend on the input & output impedances of your specific model of tank.

    The I & O transducers in a tank are basically the same design, with differences in the number & gauge of wire turns, size & mass of the core, etc. I'd expect to hear a reverb signal regardless of how it's connected, but with significant loss of level and fidelity with the leads reversed.

    Maybe we'll see!

  13. #12

    User Info Menu

    I would try reversing the input output cables. Should cause no harm. If everything else is good, You can get some sound if the cables are reversed, but it is very little reverb. So that could well be your issue. I have bought amps that were great deals because the reverb leads were reversed and output low. It could also be an incorrect reverb tank, the impedance is wrong. If you are getting some reverb it could well be reversed leads or incorrect tank. take a multimeter and measure for continuity and impedance.

  14. #13

    User Info Menu

    Pickup coil is disiconnection by driving force.

    I was experienced and recoil myself.
    Last edited by kawa; 09-28-2023 at 11:53 PM.

  15. #14

    User Info Menu

    Don't be touching it when you turn it on and be prepared to pull the plug if it starts to smoke. Unlikely, but don't ask me how I know.

  16. #15

    User Info Menu

    Quote Originally Posted by rpjazzguitar
    Don't be touching it when you turn it on
    "It" being what, now?

  17. #16

    User Info Menu

    Quote Originally Posted by Billy Z
    It could also be an incorrect reverb tank, the impedance is wrong.
    I doubt it's the wrong tank. The tank is installed beneath a layer of yellow fiberglass(?) batting which appears 100% original and undisturbed.. fwiw.

    ETA: Measured the connectors at 204R and 35R. I can't read the markings due to the insulation batting, but I think I can assume the lower figure is Input and the higher is Output.
    Last edited by WimWalther; 09-29-2023 at 02:53 AM.

  18. #17

    User Info Menu

    If there is no reverb at all , it could be one of the leads going to the either the drive coil or pickup coil. The wire leads are very thin and can break from vibration. Those can be resoldered. If either coil is open, then you’ll need a new tank.

  19. #18

    User Info Menu

    Quote Originally Posted by Billy Z
    If there is no reverb at all (...)
    As I said previously, there is some reverb with gain at full. And while I have (relatively) very little git amp experience, it seems to be much, much less than expected..

  20. #19

    User Info Menu

    "It", being the amp. I'd use the switch on a plug strip and be ready to turn it off.

    Very unlikely to be necessary or maybe even less likely than that, but costs nothing to do.

  21. #20

    User Info Menu

    Swapping the leads shouldn’t be dangerous unless there is a serious defect in your amplifier. Manufacturers tend to avoid running high-voltage lines outside of the chassis where stumbling fingers might contact them.

    However, you will have a huge impedance mismatch on both sides, which will cause it to sound poorly.

    Tanks should be marked “input” and “output.” That’s from the tank’s perspective. Current tanks usually also have color-coded insulators on the jacks. From memory, white is input, red is output.

    Check your cables. Swap out for a known-good set.

    As was mentioned earlier, the leads to the transducers are delicate and can break. Has the amp been dropped?

    Here’s a good explanation of reverb tanks:

    http://electricalfun.com/WorkbenchFun/reverb_tank.pdf


    I know you said you have a solid state amp. In a tube circuit, the reverb driver transformer isolates the tank from high voltage. A short in the transformer could lead to this. But you should have other issues if this is the case.

  22. #21

    User Info Menu

    Swap the leads. If that doesn’t help then you probably have a bad drive transistor or bad recovery transistor. I have not looked at the schematic for your amp but all the solid state amps I am familiar with don’t use a transformer to couple to the tank input .

  23. #22

    User Info Menu

    Because you have some reverb , that indicates you have continuity in your signal path. I suppose a very high resistance due to corrosion of the input / output jacks is possible. Unplugging and reconnecting should improve the signal if that is the case.

  24. #23

    User Info Menu

    The tube stuff was more directed at rpjazzguitar.

    Solid state, yeah, drive/recovery transistor/chip. But first check the easy stuff - cables.

  25. #24

    User Info Menu

    Unfortunately the schematic I have does not match what's in the reverb circuit of this amp. Schematic shows a balanced driver circuit, but the amp has a single-ended driver.

    Need to see if I can find one that's appropriate.

  26. #25

    User Info Menu

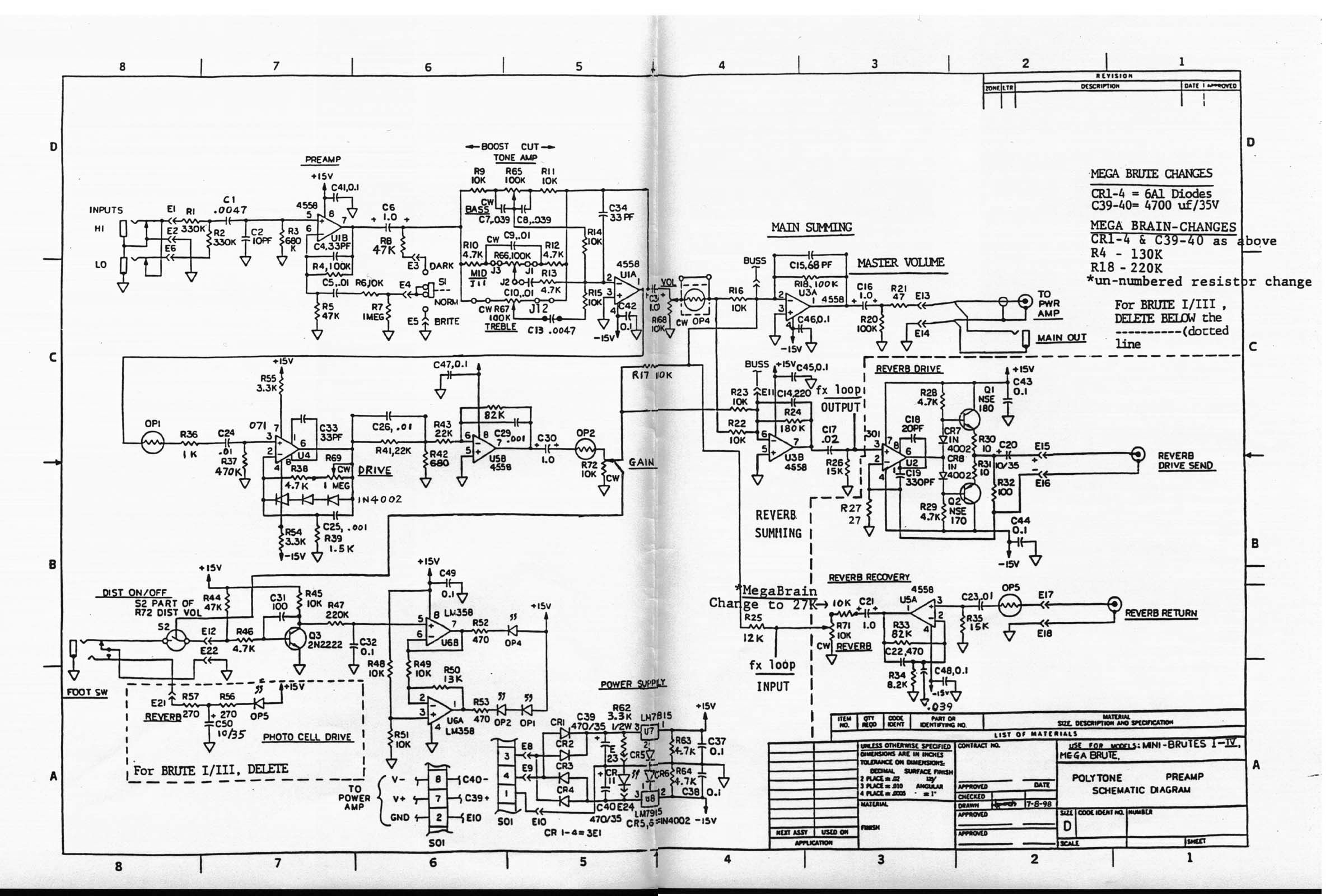

    Here's a schematic with a reverb circuit that seems to be very similar (in general) with the circuit in my amp. It uses a complementary pair of BJTs to drive the tank and a 4558 opamp to recover the signal.
    Attached Images Attached Images Reversing spring reverb input & output cables-p378_mini_brute_i-iv_-_mega_brute_preamp-jpg
